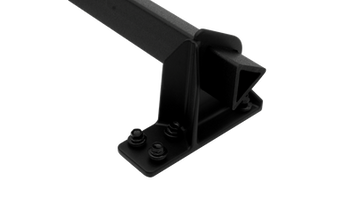

Exposed Fastener Stand

Screw Down Style For Exposed Fastener Roofs

The Snow Stop Exposed Fastener Stand is built for large-scale snow retention in light to extreme snowfall regions, delivering reliable performance on standing seam roofs for both commercial and high-demand residential projects. Constructed from a high-strength, corrosion-free polymer, it provides exceptional strength in a lightweight design and supports both 1-bar and 2-bar rail configurations for flexible layouts. The stand features an integrated ice blocker that helps break up and control ice before it can slide, adding an extra layer of protection at the roof edge. The system installs using mechanical fastening, with butyl tape pre-installed on the base of each stand to create a watertight seal and prevent leaks, while five #10 self-tapping fasteners per stand clamp the butyl and seal every penetration in a single installation step

lighter than steel

- 40°C

tested and rated

UV+

fade resistance

Colour Available

Black

Specifications

Material: TitanCore™
Seam Compatibility: Snap Lock-Single Fold-Double Fold (1"), Snap Short (1")
Maximum Load: 3,500lbs/ft (Brackets spaced every 18"-24")
Optimal Snowfall Range: Light - Extreme
Optimal Roof Pitch Use: 3:12 - 12:12

Rail Calculator

Get a Quote

Components

Rails

Stand

Accessories

Rail Length: 7'

1 Rail (0"-1.25" Clearance)

2 Rail (0"-2" Clearance)

Joiners (Friction fit)
End Caps (Friction fit)

Performance

Rails rated for 3,000lbs per linear foot

Vertical Pull Test: 3,000lbs

Horizontal Drag Test: 3,500lbs

Testing

Corrosion Resistance: 100% Rust-Proof Polymer, No Coatings Required

UV & Colour Retention:

Fully HPT-UVA Stabilized, Fade Resistant Colors Integrated Throughout Polymer

Thermal Stability:

Operating Range -40°C (-40°F) to +70°C (+158°F)

Minimal Thermal Expansion & Contraction

Exposed Fastener Stand Panel Compatibility

Install in Three Quick Steps

Snap a straight, level line according to your layout. Position each stand with the preinstalled butyl strip down on a clean, dry panel flat or rib.

Fasten the stand using the included fasteners. Tighten until the neoprene washers show even compression all the way around. Do not over tighten. *Center fastener optional.

Feed the rail through the stands along the layout line. Install rail joiners at any rail breaks and end caps at terminations, then final check for alignment.
